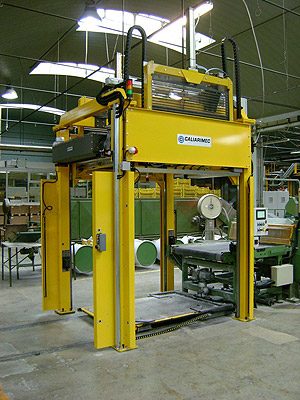

System that picks up sheets of various material (rubber, wood, plywood, pvc, non-woven fabrics, etc.) and automatically stacks them on a pallet. The storage height of the sheets is fixed, and while the pile is forming, an hydraulic platform holding the pallet is lowered.

You can choose to place the sheets on the pallet in multiple rows at selected heights. The machine consists of a solid structure in which the uptake unit is mounted, suitably designed to ensure total reliability in picking up all sort of items, even the ones wrapped in cellophane. The uptake unit move longitudinally for 1200 mm. During the pallet replacement, the machine continues to stack the sheets temporarily in a mobile magazine that can hold a stack having a maximum height of 300 mm. This stack is deposited on a new pallet as soon as the later comes into place. The stacked pallet is conveyed outside the plant on a motorized trolley and automatically replaced with a new one.

The machine is mounted on a mobile portal: this allows its complete conveyance in ``off-space``, free of any obstacle in the product output area.
http://www.caliarimec.com/wp-content/uploads/2021/07/cl-02.jpg

CL-02 Impilatore / Pallettizzatore per lastreINFO E CARATTERISTICHE

Caratteristiche tecnichevalore
Formato max lastre1200 mm x 1200 mm
Spessore max lastre40 mm
Velocità traslazione2 m/s
Altezza max pila1000 mm
Nr. di pile impostabili10
Potenza installata4 kw
AzionamentiBrushless
OPZIONI
Magazzino automatico bancali vuoti
Manipolatore per la sostituzione bancale
Rulliera trasporto bancali impilati
Fasciapallet automatica bancali impilati
Sistema di marcatura e codifica bancali
