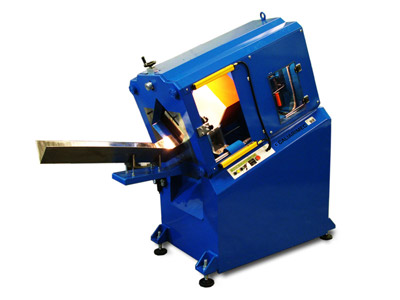

LABEL DIE-CUTTING MACHINE
Hydraulic die-cutting machine with manual loading and adjustment function for cutting speed, pressure and continuous output of die-cut product. Ideal machine for cutting labels (wine, spirits, collars, food labels, credit cards), it cuts all materials: paper, cardboard, pvc, etc. The studies ease of use makes it particularly versatile: suitable for small productions, it allows you to work in series and cut up to 800,000 pcs/h.
The innovative universal dinking die mounting system allows a quick and accurate centering of the printing. The massive building, the choice of steel, careful manufacturing and the favorable response of the market guarantee for this die-cutting machine, born and raised following the evolution of technology.
http://www.caliarimec.com/wp-content/uploads/2020/02/lab.jpg

LAB - LABEL DIE-CUTTING MACHINETECHNICAL DATA

VERSION 23DATA
Formato fust. min.cm 2x2
Formato fust. maxcm 23x23
Altezza mazzettacm 13
Movimenti al minuto15
Potenza installatakw 4
Ingombro al pavimentocm 80x150
Pesokg 700
VERSION 33DATA
Formato fust. min.cm 3x3
Formato fust. maxcm 33x33
Altezza mazzettacm 13
Movimenti al minuto15
Potenza installatakw 6
Ingombro al pavimentocm 90x180
Pesokg 1500
VERSION 36DATA
Formato fust. min.cm 4x4
Formato fust. maxcm 36x36
Altezza mazzettacm 13
Movimenti al minuto15
Potenza installatakw 7
Ingombro al pavimentocm 90x210
Pesokg 2000
